BeamClamp Components Type BC1 and BD1

Overview

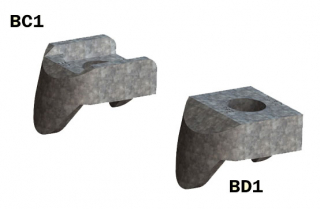

The types BC1 and BD1 are designed to hook over the upstanding flanges of angles or channels. They can be used together for channel to channel connections or in conjunction with our other clamping products for making angle/channel connections to other types of steel. The BC1 features a recessed top to grip a bolt head and the BD1 has a flat top to allow a nut and washer to be tightened on to it. It is suitable for use with bolts, threaded rod or other threaded items but we always recommend the use of grade 8.8 high tensile threaded items.  See the video of typical application for these products.

  • Hot Dip Galvanized to BS EN ISO 1461
  • Manufactured from Ductile Iron to BS EN 1563
  • 5 to 1 Factor of Safety
  • Lloyds Register approved

Note: These products are not recommended for frictional loads

Product FAQs

What is the recess in the BC used for?

Answer: The recess is used to captivate a hexagon head of a bolt or nut to stop it spinning and allow tightening to take place by using one wrench only.

Where can I use the BC or BD?

Answer: The BC and BD are used for securing angles and channels to other steel sections in tensile or positional applications.

Can the BC/BD be used with other BeamClamp products?

Answer: Yes. The BC and BD can be combined with other BeamClamp products to secure angles and channels. Typically the BC (Recessed) would be used with a BB,BK or BW (Flat top) Clamp and the BD with a BA or BT Recessed Clamp in combination.

What approvals are available for the BC/BD?

Answer: The BC/BD are approved for use in tensile or positional applications by Lloyds Register Type Approval.

Technical Specifications

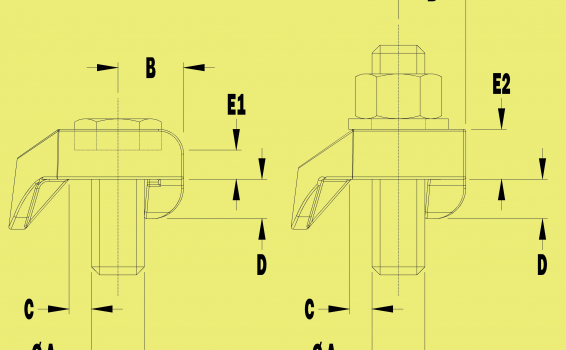

Diagram - BC/BD Clamps
Diagram - BC/BD Clamps
Product Code A Bolt Dia B C D E1 E2 Width Torque (Nm) Tensile SWL (kN)
(per 4 bolts)
BC1G08 / BD1G08 M08 9 5 6 5 9 22 3 1.25
BC1G10 / BD1G10 M10 12 4 7.5 6 11 29 10 2.5
BC1G12 / BD1G12 M12 15 6.5 9.5 7 12 31.5 35 4.32
BC1G16 / BD1G16 M16 17 8 11.5 9 17 41 75 7.5
BC1G20 / BD1G20 M20 21 9 13.5 11 21 49.5 145 11
BC1G24 / BD1G24 M24 26 13 17 13 25 60 245 17.17

The Safe Working Loads are based on assemblies tested in typical conditions.

Do not exceed the Safe Working Load (SWL) specified.
