BeamClamp Packing Pieces

Overview

Our range of packing pieces is designed to provide support to the underside of our clamps to ensure they clamp on to the steel at the correct angle. We have a series of short packers designed for the BA, BB, BT and BW clamps and a long series for the BE1, BE2 and BK1 clamps that reach further back on to the supporting steel. The packers can be used in combination with the clamping range of the clamp to ensure a correct connection. See our selection charts for the correct combinations for different steel thicknesses.

Product FAQs

Is there a maximum number of packing pieces I should use?

Answer: No, however we always recommend that if using more than three packers that the total thickness of the physical products are checked before installation. This is due to the potential of a build up of manufacturing tolerances if using too many at once.

Is there a right way up for the packing pieces?

Answer: Yes. The writing should always face upwards when installed to ensure correct installation. This is not essential on the BH1 and BH2 packing pieces as they are totally flat but on the cast packing pieces this will ensure the flat surface is at the top to support the back of the clamp correctly.

How do I know how many packing pieces to use?

Answer: This can be quickly calculated by clicking onto our resources section under “Specifying Beamclamp”, alternatively if you need assistance please contact our technical department.

What dimension is the thickness of the packing?

Answer: The thickness of the packing is always shown as dimension A on our technical tables. This should be used in combination with the tail length or clamping range of the clamp it is being used with.

Technical Specifications

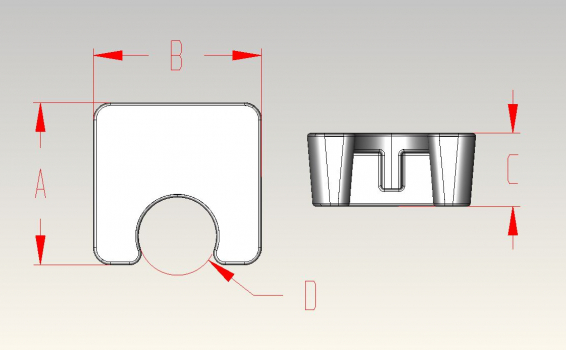

Diagram - Packing Pieces
Diagram - Packing Pieces

Short Packers for Types BA, BB, BT, and BW

BF1 Packing
Product code Bolt dia. A B C D dia.
BF1G08 M08 14 22 4 10
BF1G10 M10 18 28 5 12
BF1G12 M12 22 30 6 14
BF1G16 M16 29 35 8 18
BF1G20 M20 33 43 10 21
BF1G24 M24 45 55 12 26

BG1 Packing
Product Code Bolt dia. A B C D dia.
BG1G08 M08 14 22 08 10
BG1G10 M10 18 28 10 12
BG1G12 M12 28 30 12 14
BG1G16 M16 37 35 16 08
BG1G20 M20 43 43 20 10
BG1G24 M24 45 55 24 26

BH1 Packing
Product
code
Bolt
dia.
A B C D dia.
BH1Z08 M08 15 22 02 10
BH1Z10 M10 20 28 02 12
BH1Z12 M12 24 31 2.5 14
BH1Z16 M16 29 38 03 18
BH1Z20 M20 33 46 04 21
BH1Z24 M24 45 55 04 26

Long Packers for Type BK1

BF2 Packing
Product code Bolt dia. A B C D dia.
BF2G08 M08 24 22 04 10
BF2G10 M10 30 28 05 12
BF2G12 M12 39 30 06 14
BF2G16 M16 49 35 08 18
BF2G20 M20 58 43 10 21
BF2G24 M24 77 55 12 26

BG2 Packing
Product
code
Bolt dia. A B C D dia.
BG2G08 M08 24 22 08 10
BG2G10 M10 30 28 10 12
BG2G12 M12 39 30 12 14
BG2G16 M16 49 35 16 18
BG2G20 M20 58 43 20 21
BG2G24 M24 77 55 24 26
